1 т ковш опрокидывания рельса минирования тележки автомобиля шахты KFU1.2-6/

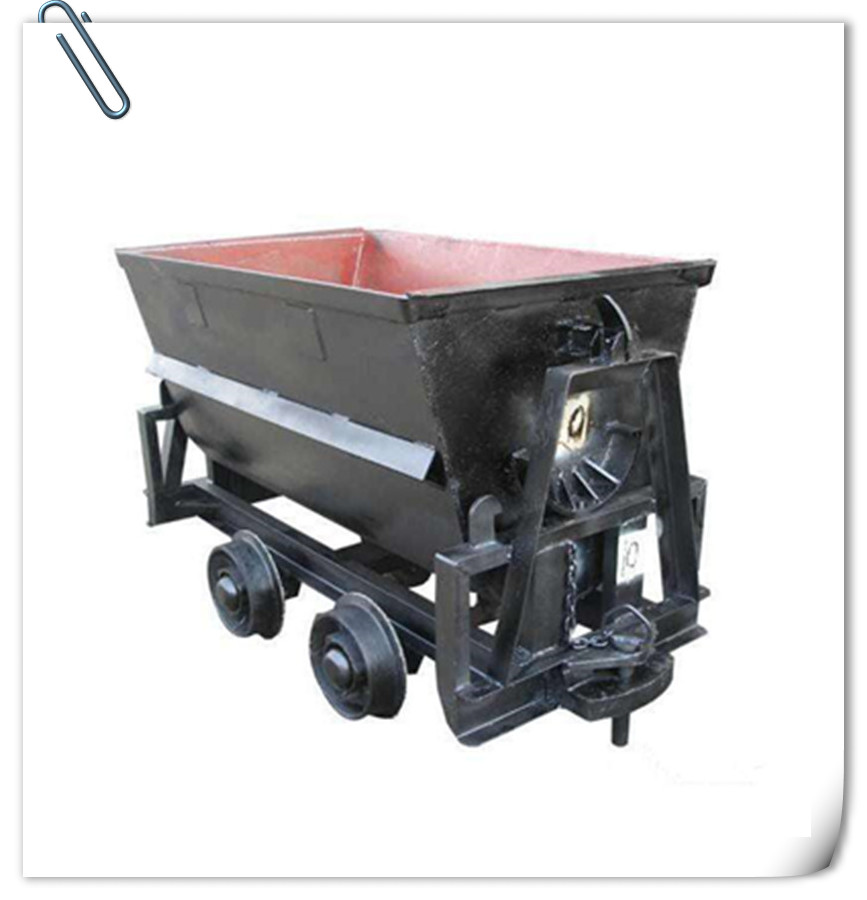

1 ton bucket tipping mining rail trolley mine car KFU1.2-6
Model Number: | KFU1.2-6
|
Compatible Brand: | |
Min. Order: | 300 $ Piece | 1 Piece |
Warranty: | months |
After sales service: | Online |
Discount: | More quantity, more discount |
Product Application
Mining rail trolley is used in the coal mine roadway transportation, large of small and medium-sized inclined shaft, small slope along the groove and the mine ground transportation.
Car by car, stationary harvesters - frame, wheel, shock absorber parts, stationary harvesters for coupling or cart baffle. When ordering, please indicate.Welcome to contact us to negotiate with us to order products.Mines in coal, ore and waste rock material such as narrow gauge railway transport vehicle, usually with winch or locomotive traction.
SPECIFICATION FOR KFU MINING RAIL TROLLEY | |||
Model | KFU0.75-6 | KFU1.0-6 | KFU1.2-6 |
Volume(m³) | 1.7 | 1.7 | 1.1 |
Theoretical Capacity (T) | 1.5 | 1.5 | 1.1 |
Max. Load (T) | 2.7 | 2.7 | 1.8 |
Gauge(mm) | 600 | 900 | 600 |
Wheel Base(mm) | 750 | 600 | 550 |
Wheel Diameter (mm) | 300 | 350 | 300 |
Traction(KN) | 60 | 60 | 60 |
Traction Height(mm) | 320 | 320 | 320 |
Overall Size(LxWxH) | 2400*1050*1200 | 2100*1150*1300 | 2000*880*1150 |
Weight(≤kg) | 720 | 970 | 610 |
